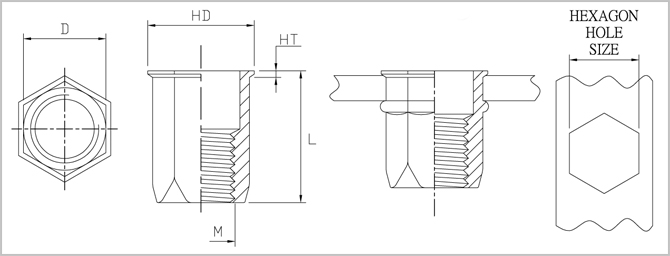

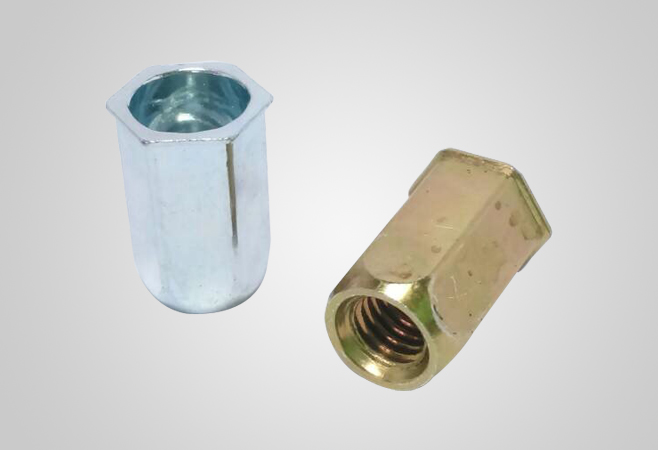

HS SERIES/SMALL FLANGE,OPEN END

Part No.

Thread Size

Hole Size

+0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

HSM4

M4 x 0.7

6.1

5.9

10.2

6.9

0.5

0.5~2.5

HSM5

M5 x 0.8

7.1

6.9

12.0

7.8

0.5

0.5~3.0

HSM6

M6 x 1.0

9.1

8.9

15.2

10.0

0.5

0.5~3.3

HSM8

M8 x 1.25

11.1

10.9

17.8

12.0

0.6

0.5~3.3

HSM10

M10 x 1.5

13.1

12.9

21.0

14.6

0.8

0.5~3.5
